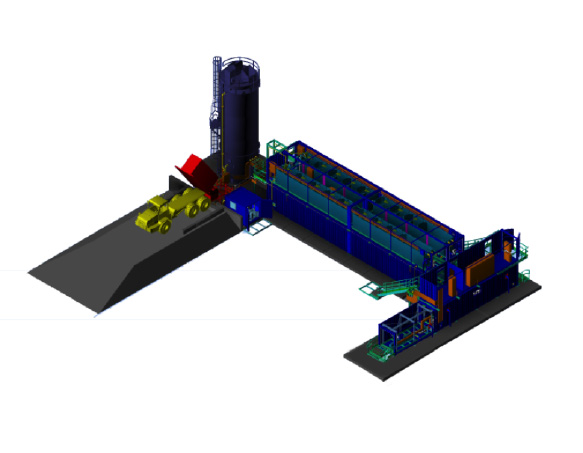

CONTAINERISED POLYMER SYSTEM

We designed a containerised polymer make-up system for BASF to install at a producer of alumina from bauxite ore mined in the Amazon. The system was designed to produce 15m³/hr of 0.3% polymer solution on a continuous basis, for each of two different polymers. The plant consisted of a single bulk bag debagging system, with a storage silo and a horizontal Continuous Polymer System (hCPS) for each of the products. The work delivered by ProProcess included design with construction, procurement and commissioning assistance of a containerised polymer make-up system. We designed the containerised system so that the majority of the work was completed off site, with placement and connection of the containers being completed on site.

CONTAINERISED HORIZONTAL CONTINUOUS POLYMER MAKE-UP SYSTEM

Through this Polymer Systems project we designed, manufactured and supplied a containerised horizontal continuous polymer system for extremely cold weather conditions in Russia. The make-up system was equipped with electrical heating elements to pre-heat the water used for polymer dissolution. The plant included a three-stage, 9m³ make-up and ageing tank system, and each stage was fitted with an agitator. The Continuous Polymer System operates in the freezing environment that experiences external temperatures below -40°C.

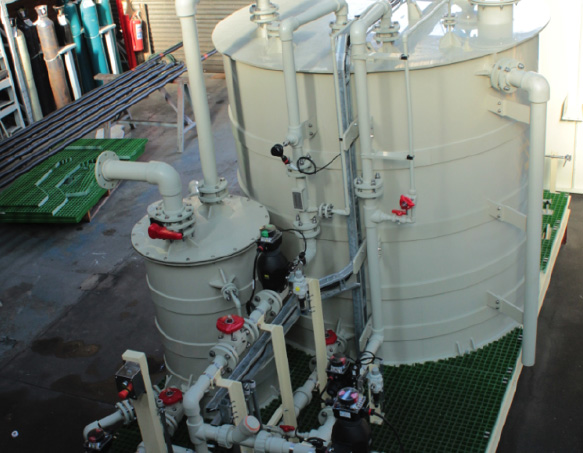

HYDROCHLORIC ACID DILUTION SYSTEM

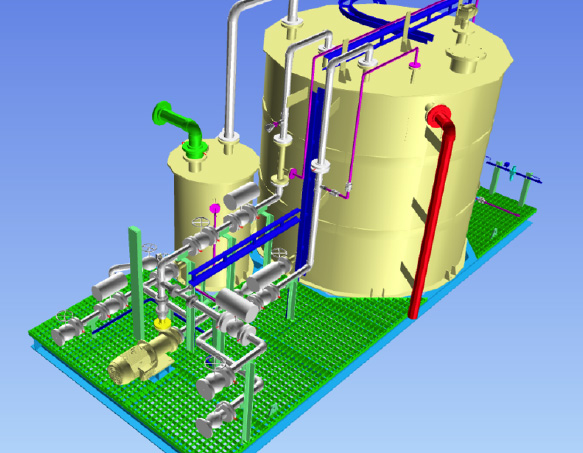

The team designed, manufactured and supplied a hydrochloric acid dilution system for a gold mine in Mali. The brief required us to design and supply a HCl dilution system to improve the efficiency and safety of acid dilution at the plant. HCl is delivered to site at 33% concentration in 1000L IBC’s and the gold extraction process required the acid to be diluted to 10%. ProProcess designed a fully skid-mounted dilution system, including the acid decanting pump, static mixer and associated control valves to recirculate or transfer acid automatically. The system is fully automated and includes all the process control and safety interlocks to ensure consistent and safe dilution of the acid. Everything was fully assembled and pre-wired at the workshop so that on-site work was limited to connection of the power supply and inlet/outlet piping.

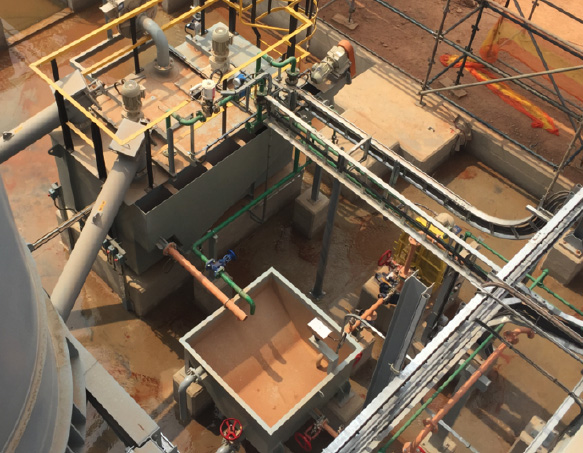

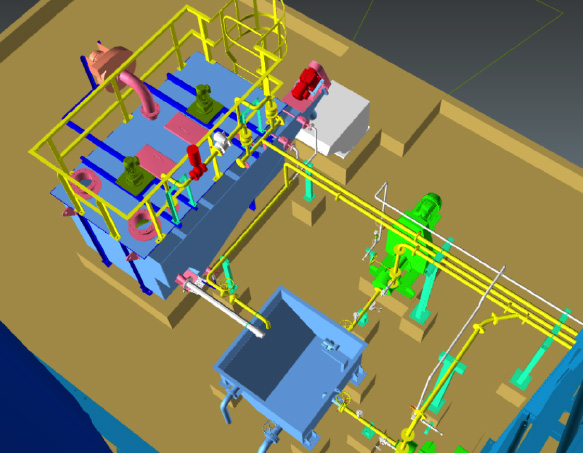

GAMSBERG LIME SLAKER PLANT

This project saw ProProcess design and supply a fully automated lime slaking plant to a Zinc project. The Gamsberg lime slaker was designed to process 2.5t/hr of dry lime to produce slaked lime slurry at 20% solids. The ProProcess lime slaker is fully automated and requires minimal operator intervention.

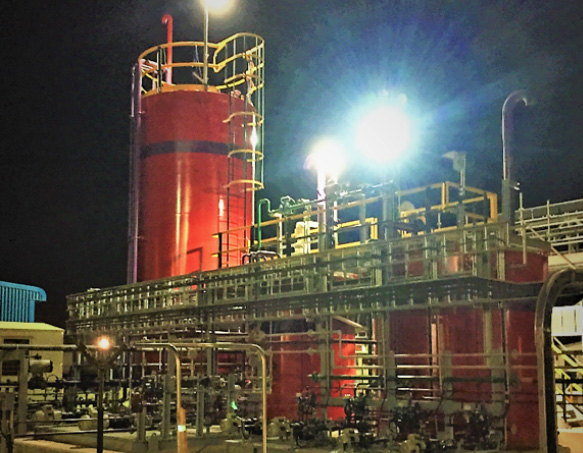

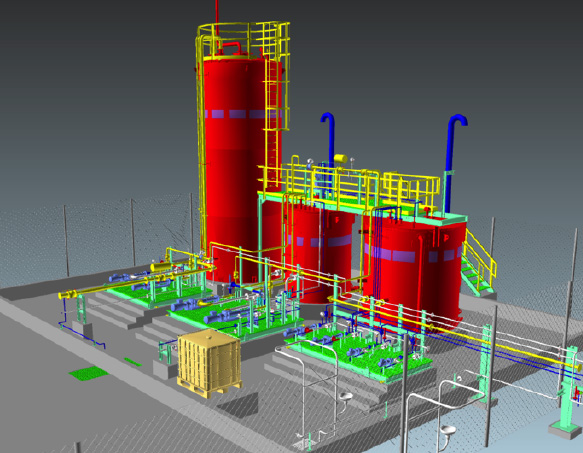

GAMSBERG CYANIDE REAGENT PLANT

ProProcess was appointed to design and supply the reagent storage and distribution systems for the Gamsberg Zinc project. This required the design and supply of a sodium cyanide reagent storage and distribution system. Sodium cyanide is used as a depressant in the flotation process to prevent the recovery of Sp, Po and Py to the froth phase. As a result the sodium cyanide is delivered as 28-34% aqueous solution in bulk tankers. Sodium cyanide is a lethal poison. The ProProcess design is strictly in accordance with standards, codes and legislation applicable to such substances.

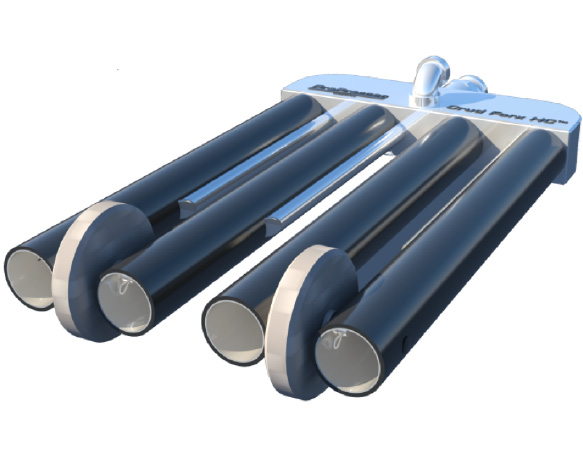

SPECIALISED CRUD REMOVAL EQUIPMENT

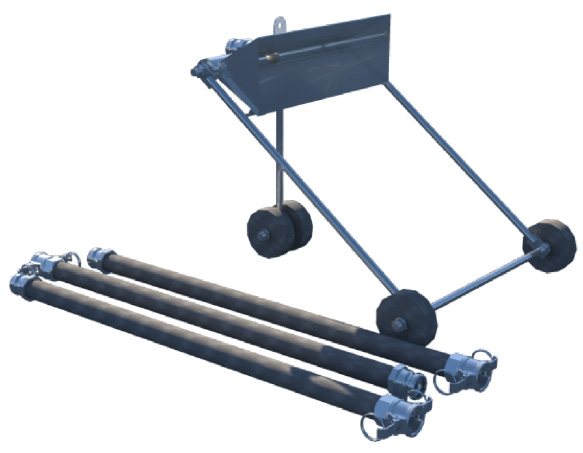

Over our first 10 years in business we have manufactured and supplied specialised crud removal equipment for various clients. Our crud removal equipment is specifically designed for the on-line removal of entrained interface and bottom solids associated with hydrometallurgical SX processes. The patented Crud Forx^TM has proved to be especially effective for bottom solids accumulated in SX settlers. Plants using the system have enjoyed prolonged periods of operation without the need to drain settlers for cleaning, even during major crud-runs as a result of poor up-stream solid/liquid separation, and gained the benefit of this cost effective solution.

MAMATWAN MINE DIESEL FUEL AND LUBE SYSTEM

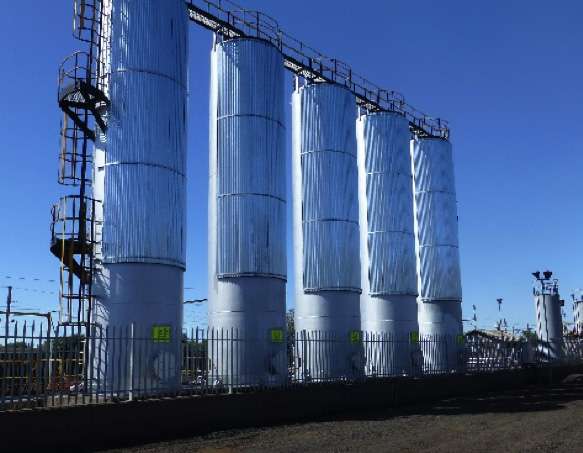

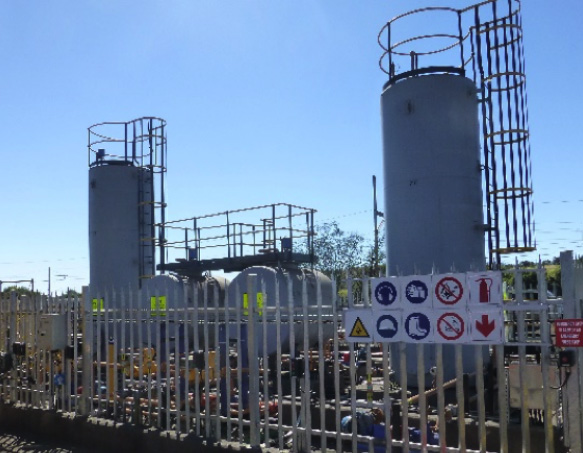

ProProcess engineered and designed a diesel fuel and lubrication oils storage and dispensing facility for a leading mining company at its manganese mine in the Northern Cape (South Africa). Our design made provision for five 83m³ vertical diesel fuel storage tanks, a 14m³ vertical tank for engine oil and two 4.5m³ horizontal tanks for engine and transmission oil. A single 14m³ vertical tank was provided for waste oil storage.

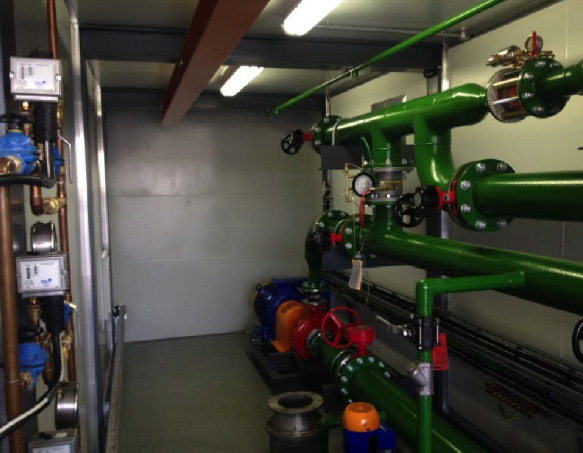

KOLOMELA CONTAINERISED FIRE SUPPRESSION PUMP SYSTEM

Through this Fire Systems project we manufactured and supplied containerised fire suppression equipment for a worldwide leading mining entity. The containerised fire suppression system is automated and can be supplied as fully ASIB compliant, complete with back-up power supply and pump test station. Fire water pressure is regulated by means of a controlled return line to the fire water reservoir, and can be adjusted to suit the client fire water network pressure requirements. The system was pre-commissioned in the workshop so that the only work required on site was the connection of power and water supply/discharge lines.

“We continually strive to discover the best solution to the problem, often by pushing the boundaries of innovation whilst retaining the fundamentals of quality, safety, governance and control. As we move into our second decade, we have exciting projects underway that are enabling us to continue to push these boundaries and to redefine process engineering performance,” says Mark Marcus, Managing Director of ProProcess.

Watch this space as the next decade of engineering excellence from ProProcess is in process!
